# Checking your network

Selecting which rates to include and which to exclude from your network is a bit of an art. pynucastro has a few tools to help check what you might be missing.

```
[1]:
```

```
import pynucastro as pyna
```

```
[2]:
```

```
reaclib_library = pyna.ReacLibLibrary()
```

`RateCollection`

validate method

Let’s start by trying to create a network for carbon burning.

To start, let’s pick the nuclei \(\alpha\), \({}^{12}\mathrm{C}\) and \({}^{20}\mathrm{Ne}\)

```
[3]:
```

```
nuclei = ["he4", "c12", "ne20"]
cburn_library = reaclib_library.linking_nuclei(nuclei)
```

Now we can make a rate collection

```
[4]:
```

```
rc = pyna.RateCollection(libraries=[cburn_library])
rc
```

```
[4]:
```

```
C12 ⟶ He4 + He4 + He4
C12 + C12 ⟶ He4 + Ne20
Ne20 + He4 ⟶ C12 + C12
He4 + He4 + He4 ⟶ C12 + 𝛾
```

Now, since we are primarily interested in \({}^{12}\mathrm{C} + {}^{12}\mathrm{C}\), let’s make sure we are not missing any other reactions that have the same reactants. The `validate()`

method will do this, by comparing the rates we have selected to another library.

```
[5]:
```

```
rc.validate(reaclib_library)
```

```
validation: Ne20 produced in C12 + C12 ⟶ He4 + Ne20 never consumed.
validation: missing He4 + He4 + He4 ⟶ p + B11 as alternative to He4 + He4 + He4 ⟶ C12 + 𝛾 (Q = -8.682 MeV).
validation: missing He4 + He4 + He4 ⟶ n + C11 as alternative to He4 + He4 + He4 ⟶ C12 + 𝛾 (Q = -11.4466 MeV).
validation: missing C12 + C12 ⟶ p + Na23 as alternative to C12 + C12 ⟶ He4 + Ne20 (Q = 2.242 MeV).
validation: missing C12 + C12 ⟶ n + Mg23 as alternative to C12 + C12 ⟶ He4 + Ne20 (Q = -2.598 MeV).
```

```
[5]:
```

```
False
```

This tells us that we are missing 2 branches of the \({}^{12}\mathrm{C} + {}^{12}\mathrm{C}\) reaction. ReacLib already scales the rates based on the branching of the products, so we should try to include these other branches.

Note: by default, `validate()`

only checks forward rates.

To address these issues, we need to include the additional nuclei. In particular, the branch that makes \({}^{23}\mathrm{Na}\) is likely important (the rate making \({}^{23}\mathrm{Mg}\) is endothermic, so less likely).

```
[6]:
```

```
nuclei += ["p", "na23"]
cburn_library = reaclib_library.linking_nuclei(nuclei)
rc = pyna.RateCollection(libraries=[cburn_library])
rc
```

```
[6]:
```

```
C12 ⟶ He4 + He4 + He4
C12 + C12 ⟶ p + Na23
C12 + C12 ⟶ He4 + Ne20
Ne20 + He4 ⟶ p + Na23
Ne20 + He4 ⟶ C12 + C12
Na23 + p ⟶ He4 + Ne20
Na23 + p ⟶ C12 + C12
He4 + He4 + He4 ⟶ C12 + 𝛾
```

```
[7]:
```

```
rc.validate(reaclib_library)
```

```
validation: Ne20 produced in C12 + C12 ⟶ He4 + Ne20 never consumed.
validation: Ne20 produced in Na23 + p ⟶ He4 + Ne20 never consumed.
validation: missing He4 + He4 + He4 ⟶ p + B11 as alternative to He4 + He4 + He4 ⟶ C12 + 𝛾 (Q = -8.682 MeV).
validation: missing He4 + He4 + He4 ⟶ n + C11 as alternative to He4 + He4 + He4 ⟶ C12 + 𝛾 (Q = -11.4466 MeV).
validation: missing C12 + C12 ⟶ n + Mg23 as alternative to C12 + C12 ⟶ He4 + Ne20 (Q = -2.598 MeV).
validation: missing C12 + C12 ⟶ n + Mg23 as alternative to C12 + C12 ⟶ p + Na23 (Q = -2.598 MeV).
validation: missing Na23 + p ⟶ n + Mg23 as alternative to Na23 + p ⟶ He4 + Ne20 (Q = -4.839 MeV).
validation: missing Na23 + p ⟶ Mg24 + 𝛾 as alternative to Na23 + p ⟶ He4 + Ne20 (Q = 11.6927 MeV).
```

```
[7]:
```

```
False
```

Now, looking at what is missing, we probably want to include \({}^{24}\mathrm{Mg}\) as an endpoint for carbon burning.

```
[8]:
```

```
nuclei += ["mg24"]
cburn_library = reaclib_library.linking_nuclei(nuclei)
rc = pyna.RateCollection(libraries=[cburn_library])
rc
```

```
[8]:
```

```
Mg24 ⟶ p + Na23
Mg24 ⟶ He4 + Ne20
C12 ⟶ He4 + He4 + He4
Ne20 + He4 ⟶ Mg24 + 𝛾
Na23 + p ⟶ Mg24 + 𝛾
C12 + C12 ⟶ p + Na23
C12 + C12 ⟶ He4 + Ne20
Ne20 + He4 ⟶ p + Na23
Ne20 + He4 ⟶ C12 + C12
Na23 + p ⟶ He4 + Ne20
Na23 + p ⟶ C12 + C12
He4 + He4 + He4 ⟶ C12 + 𝛾
```

```
[9]:
```

```
rc.validate(reaclib_library)
```

```
validation: Mg24 produced in Ne20 + He4 ⟶ Mg24 + 𝛾 never consumed.
validation: Mg24 produced in Na23 + p ⟶ Mg24 + 𝛾 never consumed.
validation: missing He4 + He4 + He4 ⟶ p + B11 as alternative to He4 + He4 + He4 ⟶ C12 + 𝛾 (Q = -8.682 MeV).
validation: missing He4 + He4 + He4 ⟶ n + C11 as alternative to He4 + He4 + He4 ⟶ C12 + 𝛾 (Q = -11.4466 MeV).
validation: missing C12 + C12 ⟶ n + Mg23 as alternative to C12 + C12 ⟶ He4 + Ne20 (Q = -2.598 MeV).
validation: missing C12 + C12 ⟶ n + Mg23 as alternative to C12 + C12 ⟶ p + Na23 (Q = -2.598 MeV).
validation: missing Ne20 + He4 ⟶ n + Mg23 as alternative to Ne20 + He4 ⟶ Mg24 + 𝛾 (Q = -7.21457 MeV).
validation: missing Na23 + p ⟶ n + Mg23 as alternative to Na23 + p ⟶ He4 + Ne20 (Q = -4.839 MeV).
validation: missing Na23 + p ⟶ n + Mg23 as alternative to Na23 + p ⟶ Mg24 + 𝛾 (Q = -4.839 MeV).
```

```
[9]:
```

```
False
```

This now seems reasonable. The reactions that are missing are all endothermic.

```
[10]:
```

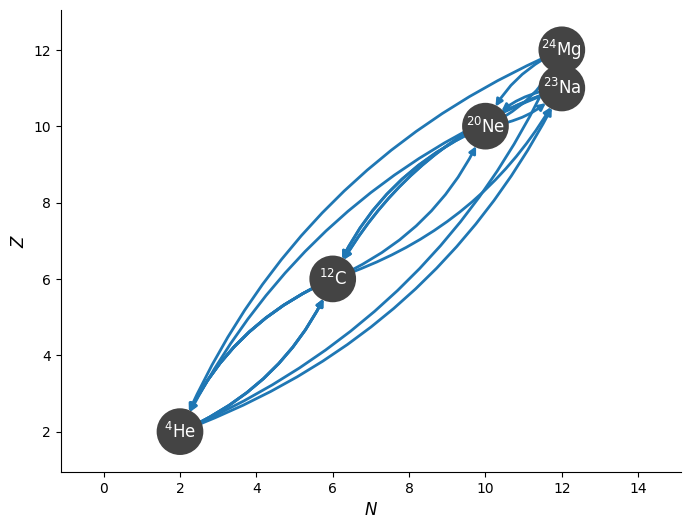

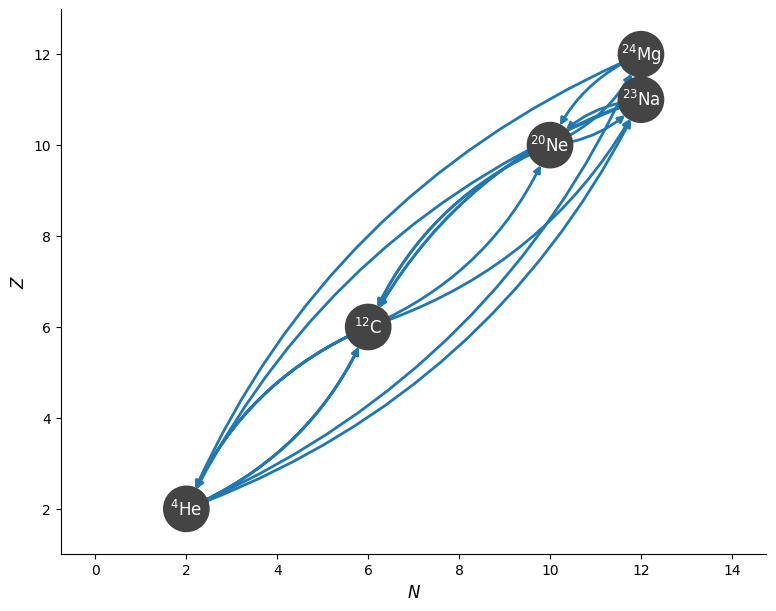

```

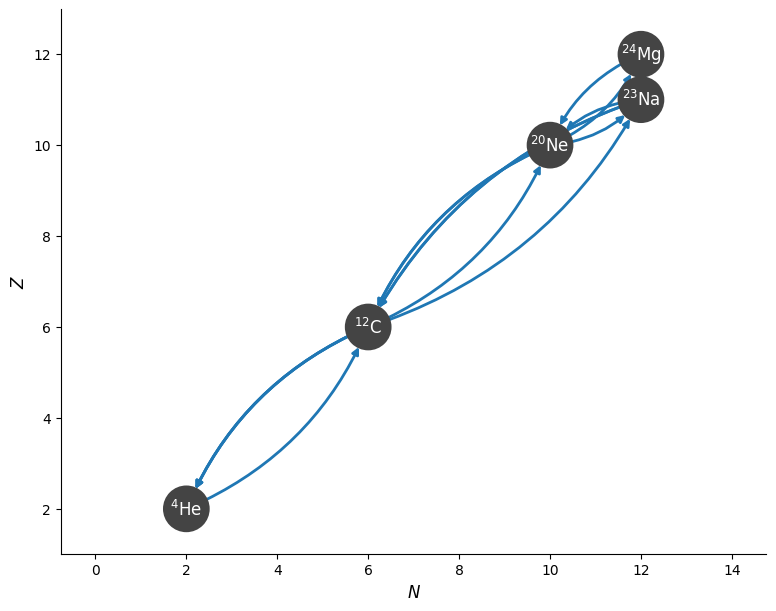

fig = rc.plot(curved_edges=True)
```

## Finding duplicate links in a `RateCollection`

Sometimes we combine multiple sources of rates into a `RateCollection`

or network, and we run the risk of having the same rate sequence duplicated, even though the rate itself may be different (i.e., a different source or tabulated vs. ReacLib).

Here we see how to check a `RateCollection`

for duplicates.

We’ll start by recreating the electron-capture supernova network explored earlier.

First we get rates from ReacLib

```
[11]:
```

```
all_nuclei = ["p", "he4",
"ne20", "o20", "f20",
"mg24", "al27", "o16",
"si28", "s32", "p31"]
ecsn_rl_library = reaclib_library.linking_nuclei(all_nuclei,with_reverse=True)
```

Next we get some tabulated rates

```
[12]:
```

```
tl = pyna.TabularLibrary()
ecsn_tabular_library = tl.linking_nuclei(["f20", "o20", "ne20"])
```

Now we build a single `Library`

using these two libraries

```
[13]:
```

```
complete_library = ecsn_rl_library + ecsn_tabular_library
```

If we print out the rates, we see that there are duplicates involving beta decays

```
[14]:
```

```
complete_library.get_rates()
```

```
[14]:
```

```
[O20 ⟶ F20 + e⁻ + 𝜈,
F20 ⟶ Ne20 + e⁻ + 𝜈,
Ne20 ⟶ He4 + O16,
Mg24 ⟶ He4 + Ne20,
Si28 ⟶ p + Al27,
Si28 ⟶ He4 + Mg24,
P31 ⟶ He4 + Al27,
S32 ⟶ p + P31,
S32 ⟶ He4 + Si28,
O16 + He4 ⟶ Ne20 + 𝛾,
Ne20 + He4 ⟶ Mg24 + 𝛾,
Mg24 + He4 ⟶ Si28 + 𝛾,
Al27 + p ⟶ Si28 + 𝛾,
Al27 + He4 ⟶ P31 + 𝛾,
Si28 + He4 ⟶ S32 + 𝛾,
P31 + p ⟶ S32 + 𝛾,
O16 + O16 ⟶ p + P31,
O16 + O16 ⟶ He4 + Si28,
Mg24 + He4 ⟶ p + Al27,
Al27 + p ⟶ He4 + Mg24,
Si28 + He4 ⟶ p + P31,
Si28 + He4 ⟶ O16 + O16,
P31 + p ⟶ He4 + Si28,
P31 + p ⟶ O16 + O16,
F20 ⟶ Ne20 + e⁻ + 𝜈,
F20 + e⁻ ⟶ O20 + 𝜈,
Ne20 + e⁻ ⟶ F20 + 𝜈,
O20 ⟶ F20 + e⁻ + 𝜈]
```

The `find_duplicate_links()`

method will find these

```
[15]:
```

```
dupes = complete_library.find_duplicate_links()
dupes
```

```
[15]:
```

```
[[O20 ⟶ F20 + e⁻ + 𝜈, O20 ⟶ F20 + e⁻ + 𝜈],
[F20 ⟶ Ne20 + e⁻ + 𝜈, F20 ⟶ Ne20 + e⁻ + 𝜈]]
```

Here we see 2 pairs of duplicates. Looking at the first

```
[16]:
```

```
for rate in dupes[0]:
print(f"{rate.fname:20} {type(rate)}")
```

```
O20__F20__weak__wc12 <class 'pynucastro.rates.rate.ReacLibRate'>
O20__F20 <class 'pynucastro.rates.rate.TabularRate'>
```

We see that one is a `ReacLibRate`

and the other is a `TabularRate`

. In general, the `TabularRate`

is preferred, since it has a density and temperature dependence and works at high densities.

We can use this information to remove the undesired rate from the `RateCollection`

using the `remove_rates()`

method.

```
[17]:
```

```
from pynucastro.rates import ReacLibRate
rates_to_remove = []
for d in dupes:
rates_to_remove += [r for r in d if isinstance(r, ReacLibRate)]
```

```
[18]:
```

```
for r in rates_to_remove:
complete_library.remove_rate(r)
```

Now we see only a single instance of these links

```
[19]:
```

```
complete_library.get_rates()
```

```
[19]:
```

```
[Ne20 ⟶ He4 + O16,
Mg24 ⟶ He4 + Ne20,
Si28 ⟶ p + Al27,
Si28 ⟶ He4 + Mg24,
P31 ⟶ He4 + Al27,
S32 ⟶ p + P31,
S32 ⟶ He4 + Si28,
O16 + He4 ⟶ Ne20 + 𝛾,
Ne20 + He4 ⟶ Mg24 + 𝛾,
Mg24 + He4 ⟶ Si28 + 𝛾,
Al27 + p ⟶ Si28 + 𝛾,
Al27 + He4 ⟶ P31 + 𝛾,
Si28 + He4 ⟶ S32 + 𝛾,
P31 + p ⟶ S32 + 𝛾,
O16 + O16 ⟶ p + P31,
O16 + O16 ⟶ He4 + Si28,
Mg24 + He4 ⟶ p + Al27,
Al27 + p ⟶ He4 + Mg24,
Si28 + He4 ⟶ p + P31,
Si28 + He4 ⟶ O16 + O16,
P31 + p ⟶ He4 + Si28,
P31 + p ⟶ O16 + O16,
F20 ⟶ Ne20 + e⁻ + 𝜈,
F20 + e⁻ ⟶ O20 + 𝜈,
Ne20 + e⁻ ⟶ F20 + 𝜈,
O20 ⟶ F20 + e⁻ + 𝜈]
```

and we can make a `RateCollection`

now

```
[20]:
```

```
rc = pyna.RateCollection(libraries=[complete_library])
```
